Airmar B117 Bronze 0 Depth Temp w/Ray Connector f/CP370 DSM300 [B117-DT-RAY]

Save $49.55

Price:
Sale price$272.95 Regular price$322.50

Description

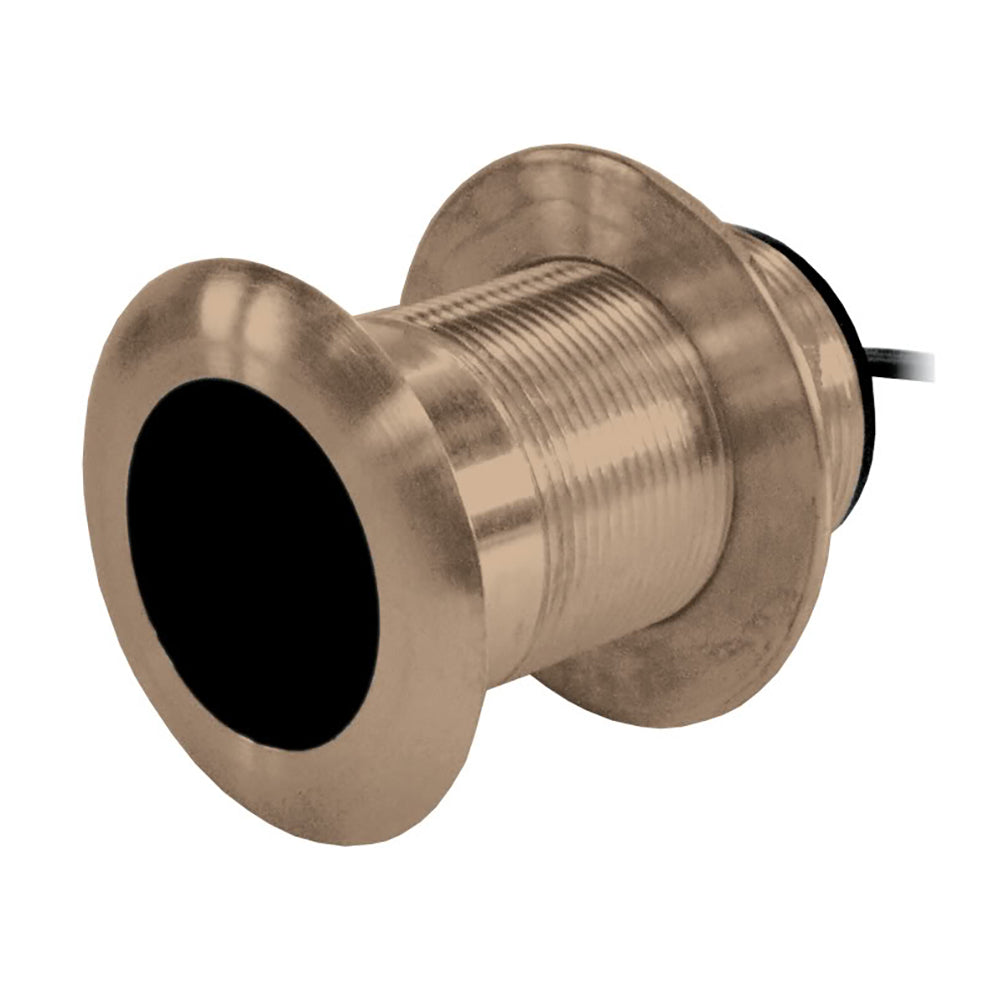

B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features:

  • Bronze Housing
  • Depth and Temperature Only
  • Usable Shaft Length: 66.5 mm (2.62”)
  • Replacement nut—405
  • 10 m (33’) cable length
  • Boat Size: 8 m (25’) and up
  • Ideal for center-console and trailered boats
  • Frequency: 50/200 kHz
  • Maximum Depth Range:
    • 50 kHz: 800-1200 ft
    • 200 kHz: 400-700 ft
  • Cone: 50 kHz—45°, 200 kHz—12°
  • RMS Power: 600 W
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
